What is Compression Spring?

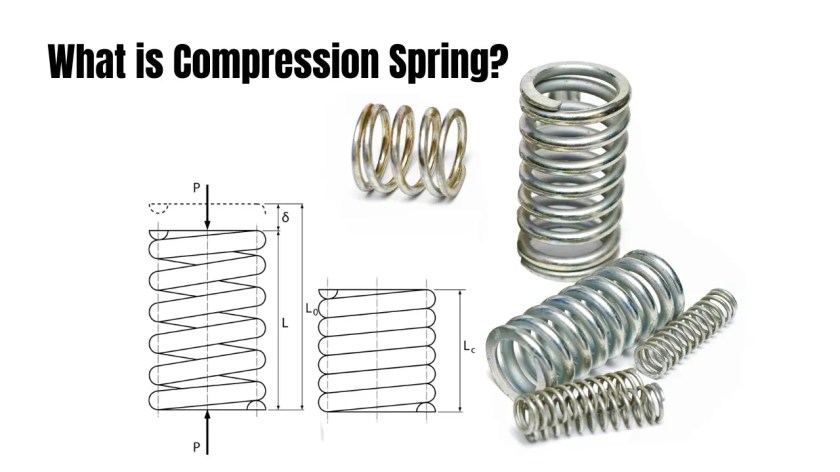

A compression spring is an open-coil helical spring that offers resistance to a compressive force applied axially. They are usually coiled at a constant diameter, though they can be coiled in other needed forms such as conical, concave (barrel), convex (hourglass), or various combinations of these.

Compression springs are used to resist force and/or store energy, depending upon the application.

Compression springs apply a force by compressing or pushing on them. Compression springs are all cylindrical and made out of round stainless steel or music wire.  Compression springs can also be made in many shapes including barrel, conical, hourglass, or oval.  The wire can also be square, rectangular, or virtually any shape, size, or material.

By far the most widely used type of spring, compression springs are designed to oppose compression and return to their uncompressed length when the applied force is removed. The potential applications for compression springs are limited only by the imagination.

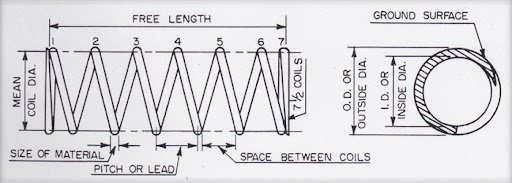

Compression Spring Dimensions

To measure a compression spring, you can use dial calipers, a micrometer, a ruler, or a tape measure for larger springs. When measuring a compression spring, you must determine the following five elements:

  • Outer diameter is measured by placing your dial calipers on the outside of the coil’s width.
  • Inner diameter is defined as the width of the inside of a coil spring’s diameter measured from the center of the helix. Sometimes, inner diameter can be difficult to measure accurately. The formula to calculate inner diameter is I.D. = O.D. – 2d where 2d is two wire diameters.
  • Defined as the full length of an uncompressed spring, free length is easy to find. To measure, place your calipers on the full length of the spring.
  • Wire diameter is found by placing your calipers on the wire in the center of your spring.
  • Total coil count is defined as each full rotation and the remainder of the last coil.

How to Measure a Compression Spring

  • Measure the spring wire diameter, preferably to 3 decimal places for accuracy using calipers.
  • Measure the outside diameter of the coils. This might vary slightly from coil to coil, take the larger value measured.
  • Measure the length in its free condition (uncompressed).
  • Count the number of coils. This is also the number of revolutions going from tip-to-tip; count to the closest 1/8th.
  • Note the winding direction of the coils. In most applications this is not important but review surrounding parts whether they require the spring to be in a specific direction.
  • Note the end type of the spring. Compression springs may have the ends ground or not ground, the end coils may be open or closed, or some other configuration that may require a blueprint description.
  • Determine the spring wire material type. If the wire is not attracted to a magnet, then it might be a special metal alloy that needs exact identification. If the material is unknown, then take note of any extreme operating conditions such as: very high or low temperatures, presence of corrosive materials or rapid cycling.

Service Life

It should be noted that if critical force versus deflection linearity is required, only the middle 60-80% of the available deflection range should be used. Therefore, reserve at least the first and last 15-20% of the area for possible spring end and adjacent coil contact effects. These effects can largely be neglected in most spring applications.

This can be achieved if the spring in question is not exposed to shock loads, rapid cycles, extreme temperatures, corrosion, or stress values above the recommended values. If the spring is statically loaded (not cyclically), almost infinite service life can be expected. A longer spring life can be achieved by shot peening.


Examples of compression springs in different metals In the manufacture of springs, spring wire of the highest quality is used.

The term “spring steel” is an inventory term that includes musical wire, hard drawn (MB) wire, and oil-hardened wire. Additionally, standard compression spring materials can include stainless steel (300 series), beryllium copper, and phosphor bronze.


Calculated rates and loads based on geometric SMI tolerances are approximate +/- 10%. Low or high index feathers have higher scores.

Compression springs typically have an hourglass shape when wound on an automatic winder; Therefore the outside / inside tolerance is only applied to the end coils. This is an improvement consideration when choosing a spring that will fit over a rod or inside a cylinder.


What is a compression spring?

Compression springs are open-coil helical springs that contain the highest potential energy when the component is compressed. They are used to resist applied compression forces or to store energy in push mode.

What are compression springs used for?

Compression springs can be used for engines, major appliances, tools, lawn mowers, medical instruments, electronics, cell phones–down to a simple pen. Anything that requires stored energy within the spring.

How do compression springs work?

When you put a load on a compression coil spring, making it shorter, it pushes back against the load and tries to get back to its original length. Compression springs offer resistance to linear compressing forces (push), and are in fact one of the most efficient energy storage devices available.

What is the difference between a compression spring and a tension spring?

The main difference is that tension springs are meant to hold two things together while compression springs are designed to keep components from coming together. While they work in opposition with each other, they are both necessary for different products.

What are compression springs made from?

Most compression springs are made from open-coiled steel wire, but there is an endless variety of sizes, stiffness (spring rate), and cross-section design and shapes available. For instance, more specialized options include conical, concave, garter, barrel, and hourglass springs.

Can compression spring be extended?

A compression spring is meant for shortening its length under the action of external force. An extension spring is meant for increasing its length under the action of external force. The compression spring will push the structural member to increase its length.

How do you install a compression spring?

What is the difference between compression and torsion?

Torsion springs are made to be twisted, while compression springs are made to be compressed. Our springs are designed and manufactured with the latest spring design programs, so you can be confident that the end result is always going to be high-quality springs.

What is Max compression of spring?

Maximum spring compression is the “maximum travel considering solid height” of a compression spring also known as the safe travel distance which your spring can travel safely without any permanent set caused by fatigue and stress.

How do you mechanically attach a compression spring to a flat surface?

How to mechanically attach a compression spring to a flat surface. Use a washer shaped like a + with a hole in the center. Insert it through the bottom coil and hold it in place with a screw.

What is the opposite to a compression spring?

Unlike a compression spring, which can only be compressed to its solid height, an extension spring has no mechanism to prevent overloading.
